Aluminium Alloy Conductors

• Application
• Other

• Cable Type
• AAAC overhead bare conductor

• Color
• Silver/Grey

• Conductor Material
• Other, Aluminium Alloy

• Conductor Shape
• Other, Stranded round

• Conductor Type
• Other, AAAC (All Aluminium Alloy Conductor)

• Connector Color
• Silver/Grey (natural aluminium color)

• Core Material
• Aluminium Alloy

• Core Number
• Single

• Diameter
• 13.60 mm (nominal)

• Dielectiric Strength
• Not Applicable (No insulation)

• Dimension (L*W*H)
• Varies as per packaging & order length

• Features
• High conductivity, lightweight, corrosion resistant, good mechanical strength, suitable for overhead transmission lines.

• Impedance
• 0.320 ohm/km (approx. at 20C)

• Install Type
• Overhead aerial

• Insulation
• Uninsulated

• Insulation Material
• Other

• Jacket Color
• Other

• Jacket Material
• Other, Not Applicable (Bare)

• Length
• Customized / as per requirement

• Material
• Aluminium Alloy (mostly 6201-T81)

• Number of Conductor
• Single Core

• Operating Temperature
• Up to 90C

• Product Type
• AAAC Overhead Conductor

• Rated Temperature
• Up to 90C

• Size
• 100 Sqmm

• Storage Temperature
• -20C to 60C

• Tensile Strength
• 30 to 33 kN (approx.)

• Usage & Applications
• Suitable for distribution, transmission and rural electrification

• Voltage
• Other, Up to 33 kV

• Weight
• 340 kg/km (approx.)

• Application
• Other

• Cable Type
• AAAC (All Aluminium Alloy Conductor)

• Color
• Silver / Metallic

• Conductor Material
• Other, Aluminium Alloy

• Conductor Shape
• Other, Round / stranded

• Conductor Type
• Stranded

• Core Material
• Aluminium Alloy

• Core Number
• 1

• Diameter
• 8.08 mm (approximately for Rabbit size)

• Dielectiric Strength
• Not Applicable (Bare)

• Dimension (L*W*H)
• Customized as per order

• Features
• High conductivity, Lightweight, Corrosion resistant, Low transmission loss, Durable

• Install Type
• Overhead

• Insulation
• None (Bare)

• Insulation Material
• Other

• Jacket Color
• Other

• Jacket Material
• Other, Not Applicable (Bare Conductor)

• Length
• As per requirement

• Material
• Aluminium Alloy

• Number of Conductor
• 7 (typically 6 Aluminium Alloy wires around 1 wire)

• Operating Temperature
• Up to 80C

• Product Type
• ACSR Rabbit Conductor

• Rated Temperature
• Up to 80C

• Size
• 34 Sqmm (Standard Rabbit Conductor size)

• Storage Temperature
• -20C to +60C

• Tensile Strength
• Minimum 13.8 kN (typical value)

• Usage & Applications
• Electrical power distribution and transmission

• Voltage
• Other, Up to 1100 V

• Weight
• Approximately 115 kg/km

• Application
• Other

• Cable Type
• Conductor

• Color
• Silver

• Conductor Material
• Other, Aluminium

• Conductor Shape
• Round

• Conductor Type
• Stranded

• Connector Color
• Silver

• Core Material
• Aluminium

• Core Number
• Single

• Diameter
• 16 mm

• Dielectiric Strength
• High

• Dimension (L*W*H)
• Standard

• Features
• Durable, rust proof, excellent conductivity

• Impedance
• Standard

• Install Type
• Outdoor

• Insulation
• PVC

• Insulation Material
• PVC

• Jacket Color
• Black

• Jacket Material
• PVC

• Length
• Customized

• Material
• Aluminium

• Number of Conductor
• Single

• Operating Temperature
• -10C to +80C

• Product Type
• Dog Conductor

• Rated Temperature
• Up to 80C

• Shield Material
• Aluminium

• Size
• Standard

• Storage Temperature
• -20C to 60C

• Tensile Strength
• High

• Usage & Applications
• Power Transmission Lines

• Voltage
• Other, High Voltage Application

• Weight
• As per specification

• Application
• Other

• Armored Material
• Not armored

• Cable Type
• Covered Conductor

• Color
• Silver conductor with black insulation

• Conductor Material
• Aluminum

• Conductor Shape
• Round

• Conductor Type
• Stranded

• Connector Color
• Silver (bare conductor)

• Core Material
• Aluminum

• Core Number
• 1, 2, or 3 core (as required)

• Diameter
• Varies according to conductor size

• Dielectiric Strength
• Minimum 21 kV/mm

• Dimension (L*W*H)
• As specified per design

• Features
• High tensile strength, corrosion resistant, lightweight, durable, weatherproof insulation

• Impedance
• Standard as per IS or IEC

• Install Type
• Aerial/Overhead installation

• Insulation
• XLPE insulated

• Insulation Material
• Other

• Jacket Color
• Black

• Jacket Material
• Other, Polyethylene

• Length
• As per customer requirement (customized)

• Material
• High grade aluminum and XLPE insulation

• Number of Conductor
• Single or multiple (as per specification)

• Operating Temperature
• Up to 80C

• Product Type
• Aluminium Covered Conductor

• Rated Temperature
• -10C to +80C

• Shield Material
• Aluminum

• Size
• 16 sqmm to 200 sqmm

• Storage Temperature
• -20C to +80C

• Tensile Strength
• > 120 N/mm2

• Usage & Applications
• Suitable for overhead power transmission and distribution lines

• Voltage
• Other, Up to 1100 V

• Weight
• Varies per length and size

• Application
• Other

• Armored Material
• Not Armored

• Cable Type
• Stranded cable

• Color
• Aluminum grey

• Conductor Material
• Other, Aluminum Alloy

• Conductor Shape
• Round

• Conductor Type
• Stranded

• Core Material
• Aluminum Alloy

• Core Number
• Single core

• Diameter
• 14.15 mm

• Dielectiric Strength
• Not Applicable (bare conductor)

• Dimension (L*W*H)
• As per specification

• Features
• High conductivity, corrosion resistant, light weight, easy installation

• Impedance
• Standard as per IS/IEC

• Install Type
• Overhead

• Insulation
• No insulation (bare conductor)

• Insulation Material
• Other

• Jacket Color
• Other

• Jacket Material
• Other, No Jacket

• Length
• As per customer requirement

• Material
• Aluminum Magnesium Silicon Alloy

• Number of Conductor
• Single (per cable)

• Operating Temperature
• Up to 80C

• Product Type
• AAAC DOG (All Aluminium Alloy Conductor)

• Rated Temperature
• Up to 80C

• Size
• Diameter: 14.15 mm (typical for DOG conductor)

• Storage Temperature
• -20C to +85C

• Tensile Strength
• Minimum 23 kN

• Usage & Applications
• Overhead power transmission lines

• Voltage
• Other, Medium Voltage (up to 33 kV)

• Weight
• 429 kg/km (approx.)

• Application
• Other

• Armored Material
• Not Armored

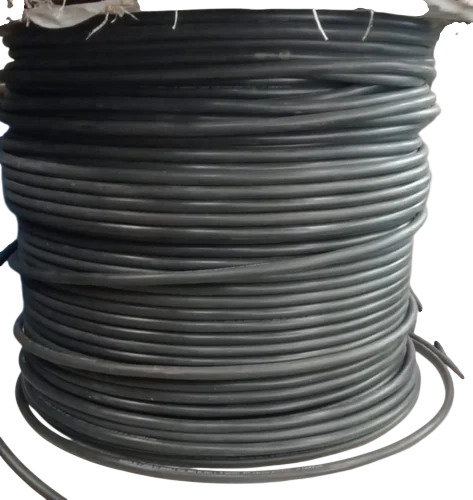

• Cable Type
• Aerial Bundled Cable / Covered Conductor

• Color
• Black

• Conductor Material
• Other, Aluminium

• Conductor Shape
• Round

• Conductor Type
• Stranded

• Core Material
• Aluminium

• Core Number
• Single Core

• Diameter
• Approx. 12.5 mm

• Dielectiric Strength
• 15 kV/mm (typical for XLPE)

• Dimension (L*W*H)
• Custom / As per requirement

• Features
• High weather resistance, UV stabilized, Excellent electrical conductivity, Resistance to tracking and erosion

• Install Type
• Overhead

• Insulation
• XLPE

• Insulation Material
• Other

• Jacket Color
• Black

• Jacket Material
• Other, XLPE

• Length
• As per requirement / standard supply length

• Material
• Aluminium Conductor with XLPE insulation

• Number of Conductor
• 1 (Single Core)

• Operating Temperature
• Up to 90C

• Product Type
• Covered Conductor

• Rated Temperature
• 90C

• Size
• 70 Sqmm

• Storage Temperature
• -20C to 60C

• Tensile Strength
• Minimum 13.5 kN

• Usage & Applications
• Distribution lines in urban and rural areas, Tree prone areas, Upgrading bare conductor lines

• Voltage
• Other, Up to 33 kV

• Weight
• Approx. 285 - 320 kg/km

• Armored Material
• Steel

• Cable Type
• Armoured Cable

• Color
• Black

• Conductor Material
• Other, Aluminium

• Conductor Shape
• Other, Circular

• Conductor Type
• Stranded

• Core Number
• 4

• Insulation Material
• XLPE

• Jacket Color
• Black

• Jacket Material
• PVC

• Length
• 100 m (Standard)

• Material
• Aluminium

• Number of Conductor
• 4

• Operating Temperature
• -15C to +70C

• Product Type
• Low Tension Power Cable

• Size
• 10x4 Sqmm

• Usage & Applications
• Industrial and Residential Power Supply

• Voltage
• Other, 1100 V

• Application
• Other

• Cable Type
• AAAC (All Aluminium Alloy Conductor)

• Color
• Silver

• Conductor Material
• Other, Aluminium Alloy

• Conductor Shape
• Round

• Conductor Type
• Stranded

• Connector Color
• Silver

• Core Material
• Aluminium Alloy

• Core Number
• Single Core

• Diameter
• 31.47 mm

• Dielectiric Strength
• Not applicable (bare conductor)

• Dimension (L*W*H)
• As per standard packing

• Features
• High conductivity, Light weight, Corrosion resistant, Low sag

• Install Type
• Aerial / Overhead

• Insulation Material
• Other

• Jacket Color
• Other

• Jacket Material
• Other, Not Applicable (bare conductor)

• Length
• 1000 meter

• Material
• Aluminium Alloy 6201

• Number of Conductor
• 7

• Operating Temperature
• -20C to +75C

• Product Type
• AAAC Raccoon Conductor

• Rated Temperature
• Up to 75C

• Shield Material
• Aluminium Alloy

• Size
• 860 sq mm

• Storage Temperature
• -20C to +60C

• Tensile Strength
• Minimum 26 kN

• Usage & Applications
• Overhead Power Line, Electrical Transmission System

• Voltage
• High Voltage

• Weight
• Approx. 2950 kg/km

• Application
• Other

• Cable Type
• AAC (All Aluminium Alloy Conductor)

• Color
• Silver

• Conductor Material
• Other, Aluminium alloy

• Conductor Shape
• Round

• Conductor Type
• Stranded

• Core Material
• Aluminium alloy

• Core Number
• One

• Diameter
• Approx. 10.05 mm

• Dielectiric Strength
• Not applicable (bare conductor)

• Dimension (L*W*H)
• Customizable

• Features
• High conductivity, corrosion resistant, lightweight, suitable for overhead lines

• Impedance
• Depends on installation

• Install Type
• Overhead

• Insulation
• Uninsulated

• Insulation Material
• Other

• Jacket Material
• Other, N/A (bare conductor)

• Length
• As per customer requirement

• Material
• Aluminium alloy

• Number of Conductor
• Single

• Operating Temperature
• Up to 80C

• Product Type
• AAC (All Aluminium Alloy Conductor) - Rabbit

• Rated Temperature
• Up to 80C

• Size
• RABBIT (approx. 7/3.35 mm)

• Storage Temperature
• -20C to 60C

• Tensile Strength
• Minimum 13.77 kN

• Usage & Applications
• Suitable for power transmission and distribution

• Voltage
• Other, Suitable for medium and high voltage

• Weight
• Approx. 148 kg/km

• Application
• Other

• Color
• Black

• Conductor Material
• Other, AAAC

• Conductor Type
• Stranded

• Insulation Material
• Other

• Jacket Material
• Other, HDPE

• Material
• Aluminium

• Product Type
• Covered Conductor

• Rated Temperature
• 90C

• Usage & Applications
• Overhead transmission

• Voltage
• Other, 33 kV
